How to use the ballpoint pen

• 1

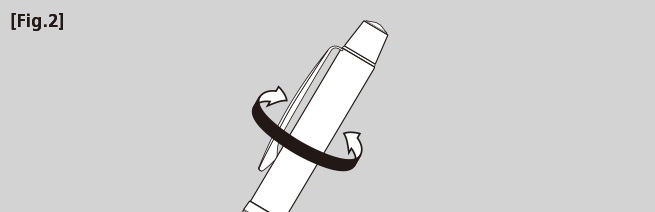

  Turn the upper barrel to make the tip come out. Stop the rotation at the color you want. [Fig.2]

• 2

  To retract the pen tip, turn the upper barrel. [Fig.2]

How to use the mechanical pencil

• 1

  Turn the upper barrel to make the mechanical pencil come out. Press the eraser cap to make the lead come out. [Fig.2]

• 2

  To retract the lead, gently press the lead tip while pressing the eraser cap.

• 3

  To retract the writing unit of the mechanical pencil, rotate the upper barrel. [Fig.2]

• 4

  Turn the eraser cap counterclockwise and remove it to reveal the eraser.

•

  1

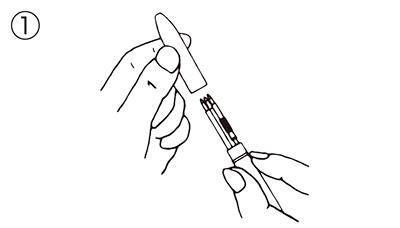

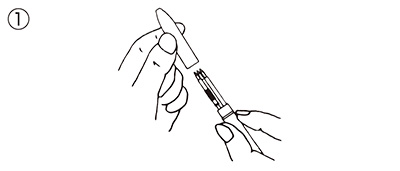

  Pull the lower barrel to remove.

•

  2

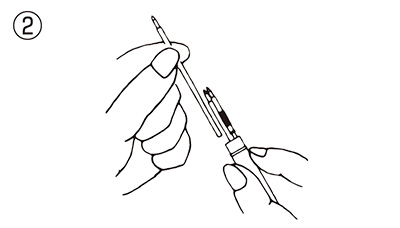

  Pull the empty refill out.

•

  3

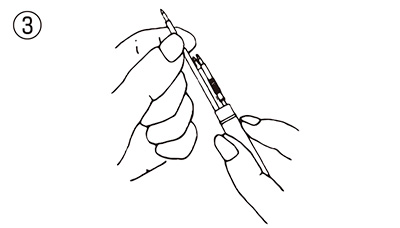

  Insert a new refill completely into the refill holder.

•

  4

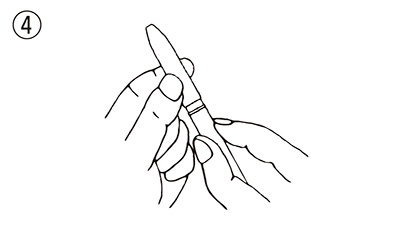

  Firmly insert the removed lower barrel all the way to the back.

•

  1

  Pull the lower barrel to remove.

•

  2

  Twist and extend the mechanical pencil.

•

  3

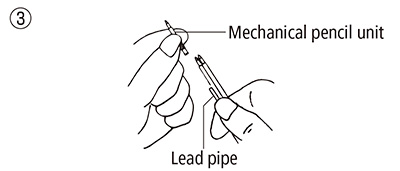

  With the pen tip pointing upward, hold the lead pipe and pull out the mechanical pencil unit.

•

  4

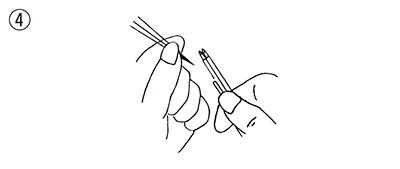

  Drop in the replacement lead refills.
  * Inserting four or more lead refills may cause the guide pipe to clog.

•

  5

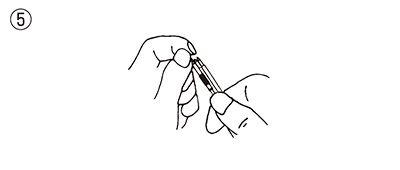

  Firmly insert the mechanical pencil unit into the lead pipe all the way to the back.

•

  6

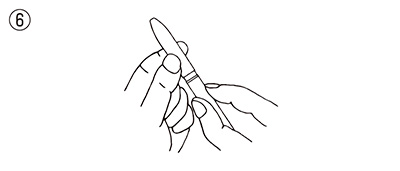

  Firmly insert the removed lower barrel all the way to the back.

• Please use PILOT's BRFS-10F (0.7 mm ball diameter) as the ballpoint pen refill.
  * The easiest way to find the right ballpoint pen refill is to bring the refill that you usually use as a sample.
• Please use only genuine PILOT 0.5 mm products for the mechanical pencil’s lead refills. There are 8 degree leads.
• Please use PILOT's HERFS-10 for eraser refill.

• Please do not use this product for any purpose other than writing.
• Keep away from children.
• Do not put the head crown, eraser, mechanical pencil unit, or any other parts into your mouth.
• Avoid writing with the nib angled above the horizontal because it may cause the ink to leak.
• Avoid vigorous shaking or excessive force because this may damage the writing tip or pencil lead refills.
• Avoid severe impact or violent shaking because the ink may leak.
• Always retract the writing tip after use.
• Please be warned that applying chemicals, including solvents, such as alcohol, causes cracks or discoloration.
• Note that it may not be possible to remove this ink if it accidentally gets on your clothes.
• Do not store in places exposed to direct sunlight or high temperatures.
